System One is FritsJurgens’ most compact and narrow pivot hinge – a single pivot point, offering a free-swing pivot door for doors with slim door frames.
Compact and slim
System One acts as a single pivot point without hold positions or self-closing features. It is a simple, slim and narrow, yet broadly applicable pivot hinge.

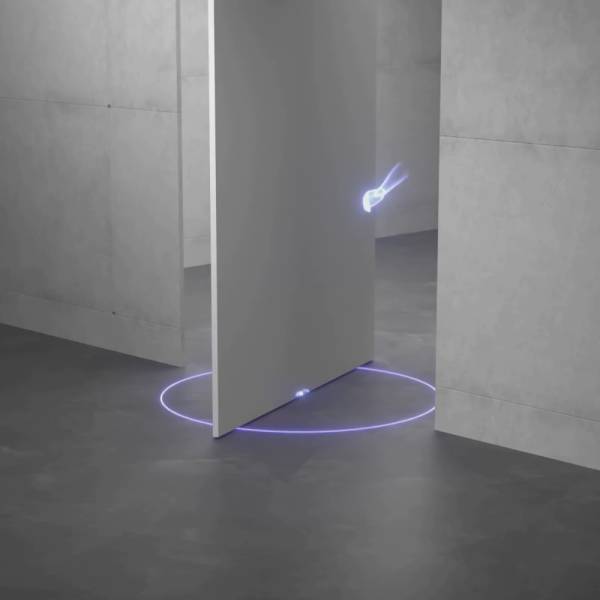

Free swing
The simplicity of System One allows for free swing pivot doors that can easily be combined with door frames.

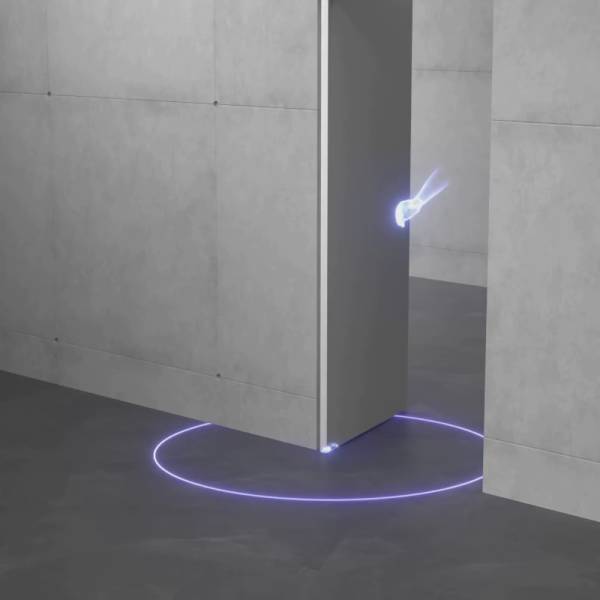

Single- and double acting doors
System One’s free rotation means that this pivot hinge can be applied in both single- and double-acting pivot doors.
SYSTEM ONE

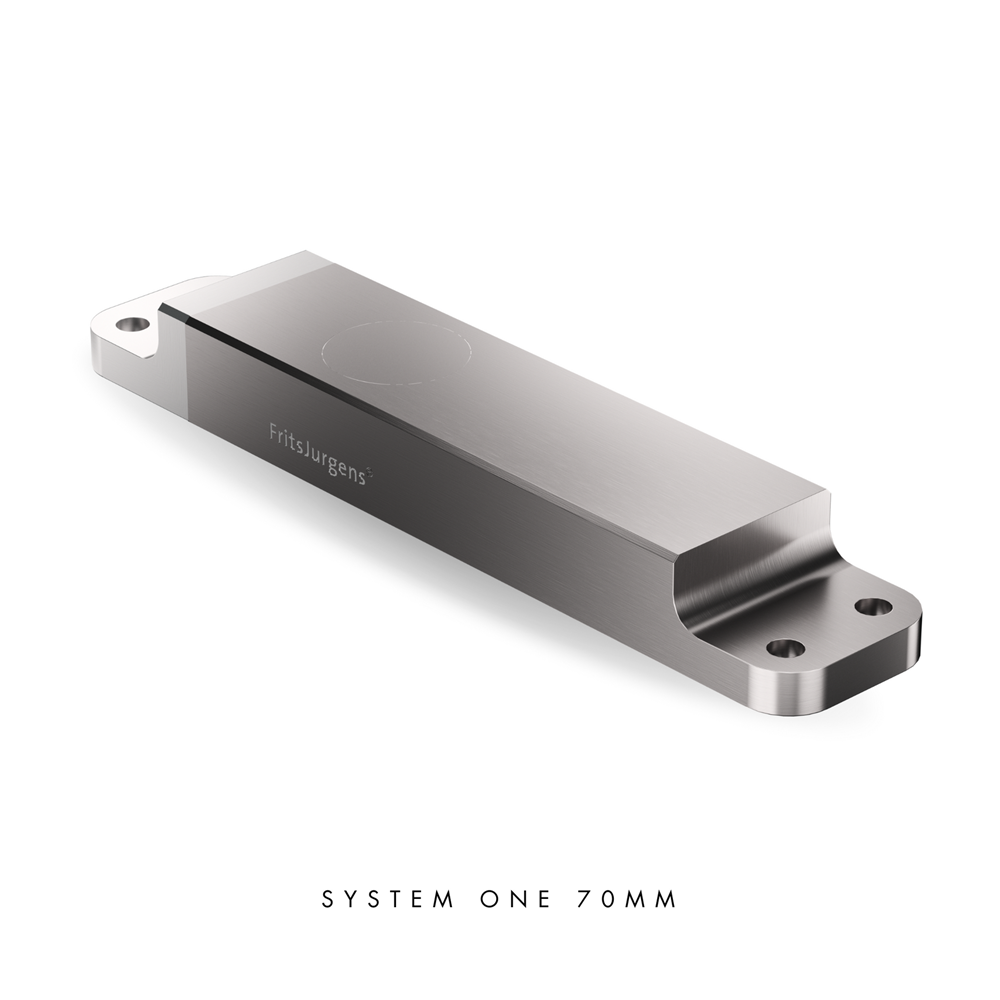

The new System One is only 18 mm high, much slimmer than the previous One. It is available in two versions: the regular System One 70 mm, and System One 40 mm.

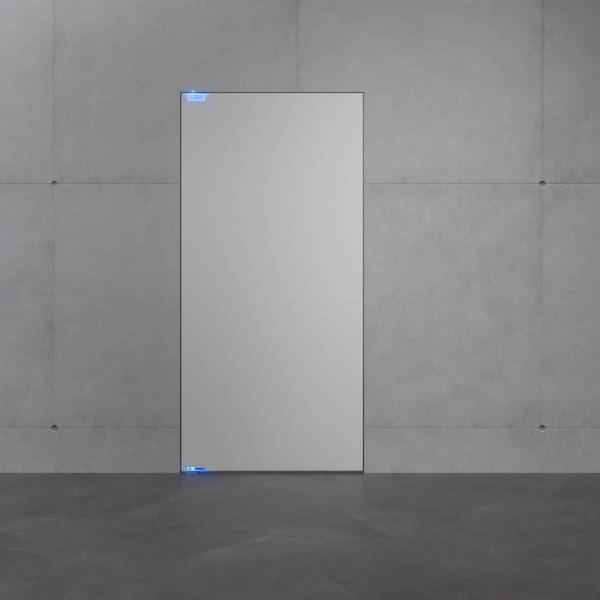

System One 70 mm has a pivot point from 70 mm from the side of the door to the middle placement. System One 40 mm can be combined with Top pivot 40 mm and has a fixed pivot point of 40 mm from the side of the door. Internally, these products are the same.
Two cover plates are available for System One 40 mm, just like for System M and M+ 40 mm. These are also available in the same colors: stainless steel and black.
The new One has, like the old One, a load-bearing capacity of up to five hundred kilograms. This new system can be used for every solution that the old One could. And, combined with Top pivot Reversed, it is now possible to create extremely thin door frames.
