Sugatsune 95° Heavy-Duty Hinge J95-C24/16T

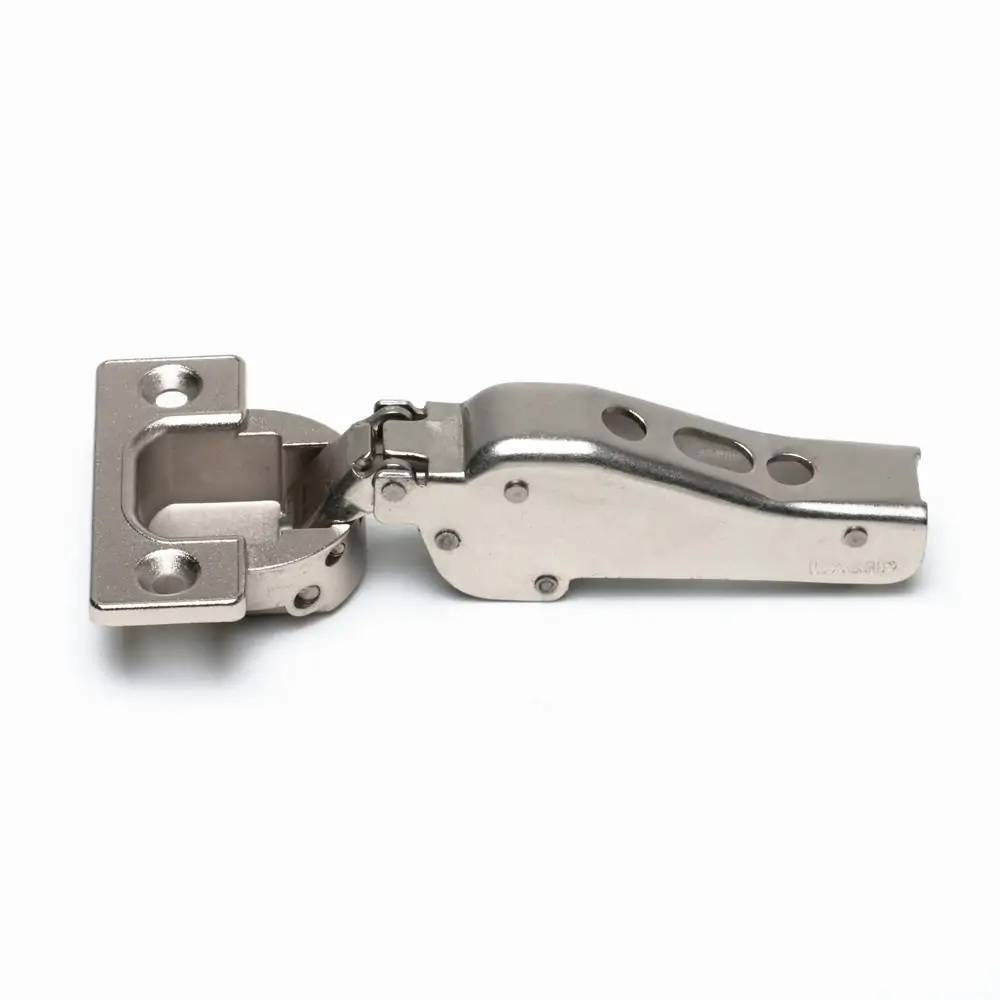

Sugatsune J95 Series Heavy-Duty Concealed Hinge.

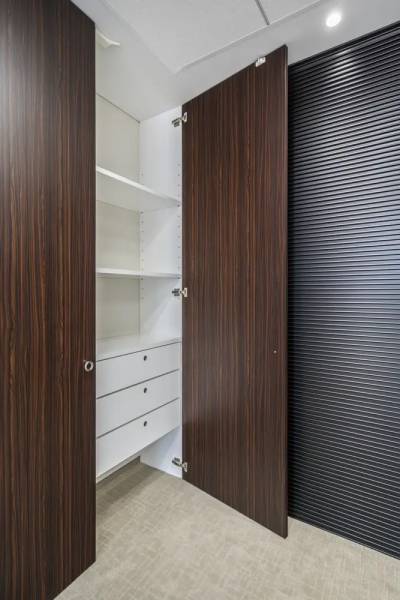

Concealed hinges are a great look, but can be limited to doors with a bigger width and heavy door weight. This European concealed hinge has been designed to support heavy, full height doors with only two hinges!
- Load capacity: 25 kg (55Ibs) / 2pcs, 40kg (88lbs) / 3pcs.
- Maximum door width: 800mm (31-1/2") / 2pcs,900mm (35-7/16") / 3pcs.
- Clip on type for easy installation.
- 3-way adjustment with door installed.
- 20-25mm Overlay.
- Free-Swinging.
- Requires mounting plate J95-P6T for wood door installation (sold separately).
- Glass faceplate (GH-J95FP) required for glass door applications.
- Requires 6ea. M5 or equivalent (US#10) screws: 2 pcs for each hinge, and 4 pcs for each mounting plate. (not included).
- Cup dia. 40mm, bore depth 15mm.
Code: SG522.J95
Price: €25.00
(including 19% VAT)
