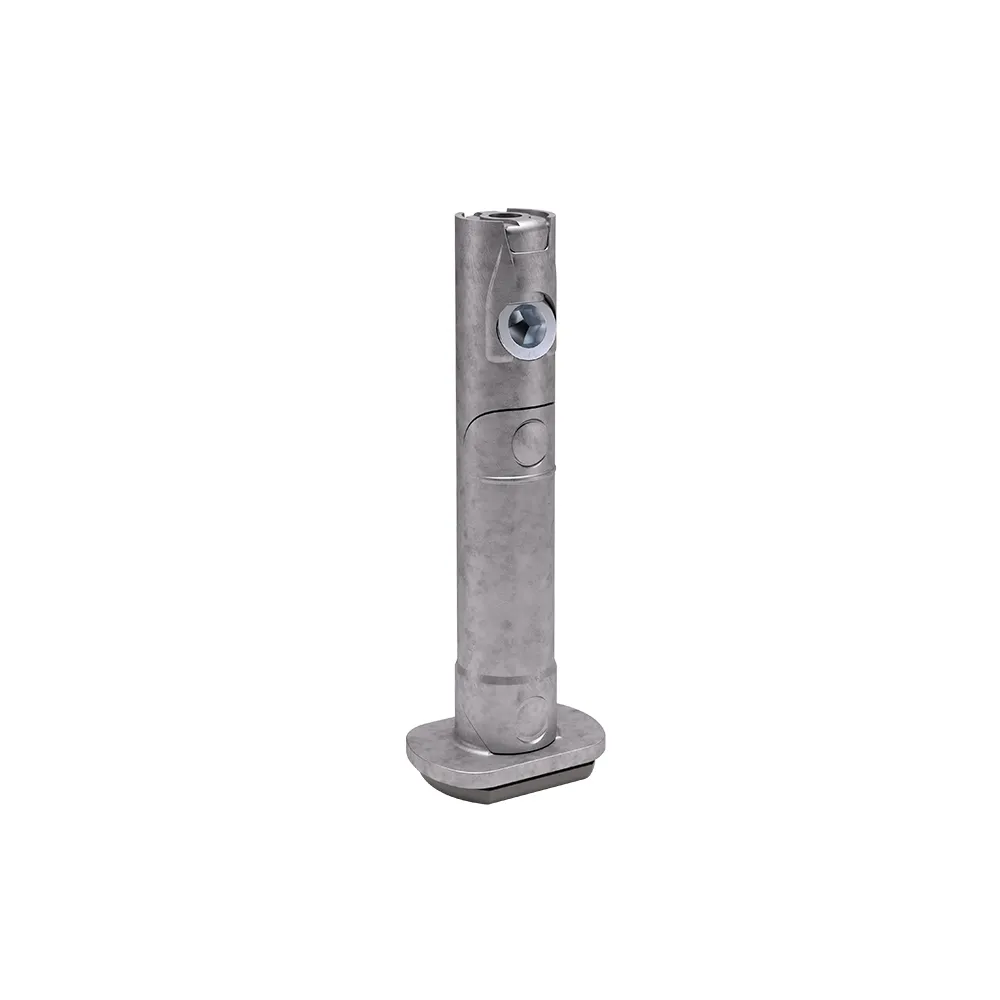

REKORD 12mm - HOLE CENTRE 52mm
REKORD 12 is a concealed leveller to be fixed in the side panels with 18mm minimum thickness. It is suitable to align heavy duty wardrobes, bookcases and modular furniture, as well as for flat-pack furniture.
REKORD 12 is placed into the bottom edge of the side panel and it is then adjustable through a Ø8 mm spot drilled in the inside carcase, by using a S4 mm allen wrench.
The engineering plastic glide is indipendent in order to make the adjustment easier and to prevent the scratching of the floor.
It is available in four versions: with hole centres 52, 70, 96 and 120 mm.
All versions of REKORD 12 grant a capacity loading of 150 Kg each and 12mm adjustment.
The weight transmission ratio of the gears, that is 1:1.5, reduces the lifting effort sensibly.
