APC1 HANGER SCREW FIXING

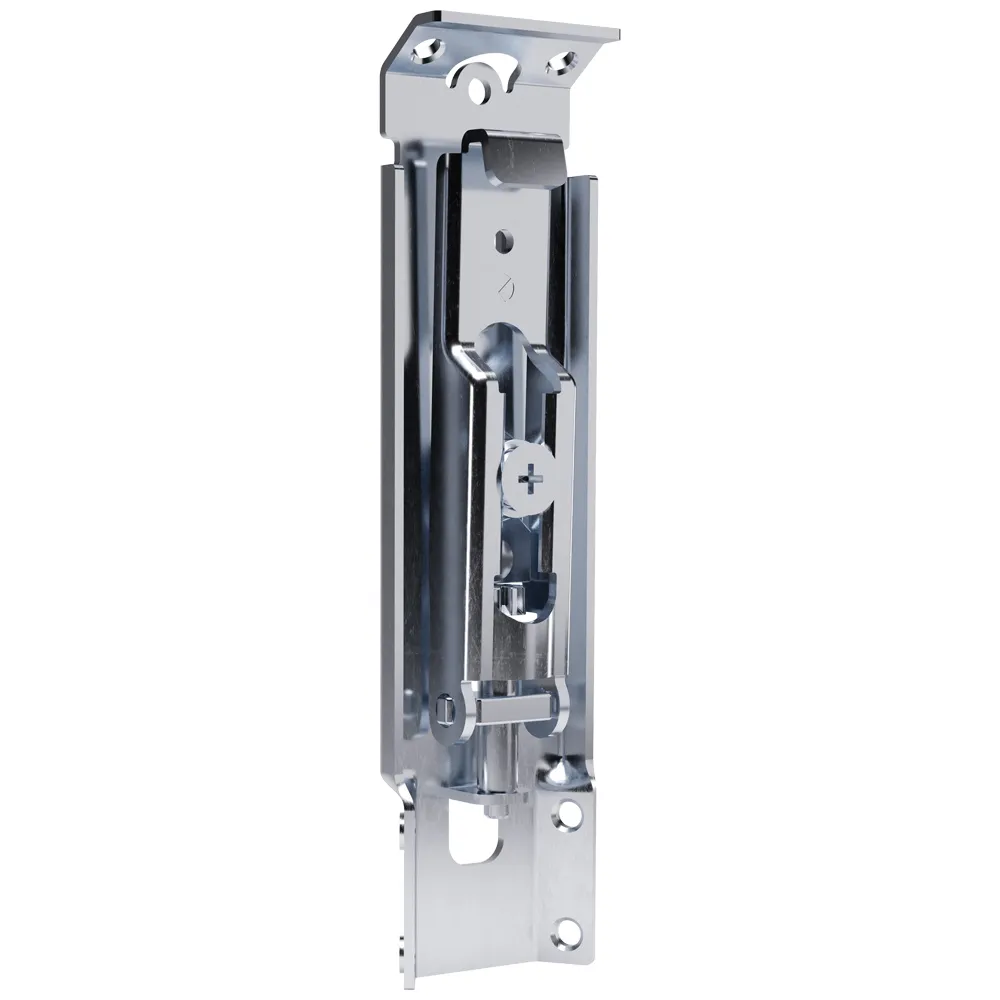

APC1 is a two-handed invisible screw fixing cabinet hanger.
APC1 requires a simple installation, without any pre-drilling operations.
It can be installed on cabinets with a minimum sanitary gap of 16 mm.
APC1 allows a vertical adjustment up to 18 mm and an in-depth adjustment of maximum 31 mm.
The adjustments can be carried out from the inside of the cabinet by using a standard PZ2 screwdriver.
Also featured in the APC family are 1 type of wall plate and 2 types of wall bars made of very thick zinc-coated steel and hardened by punched impressions.
Wall bars and wall plates feature oval holes which facilitate the correct positioning and give possibility to carry out the horizontal adjustment.
Also available 2 di fferent cover caps: one round version for Ø 20 mm hole and one square version for double Ø 12 mm holes.
