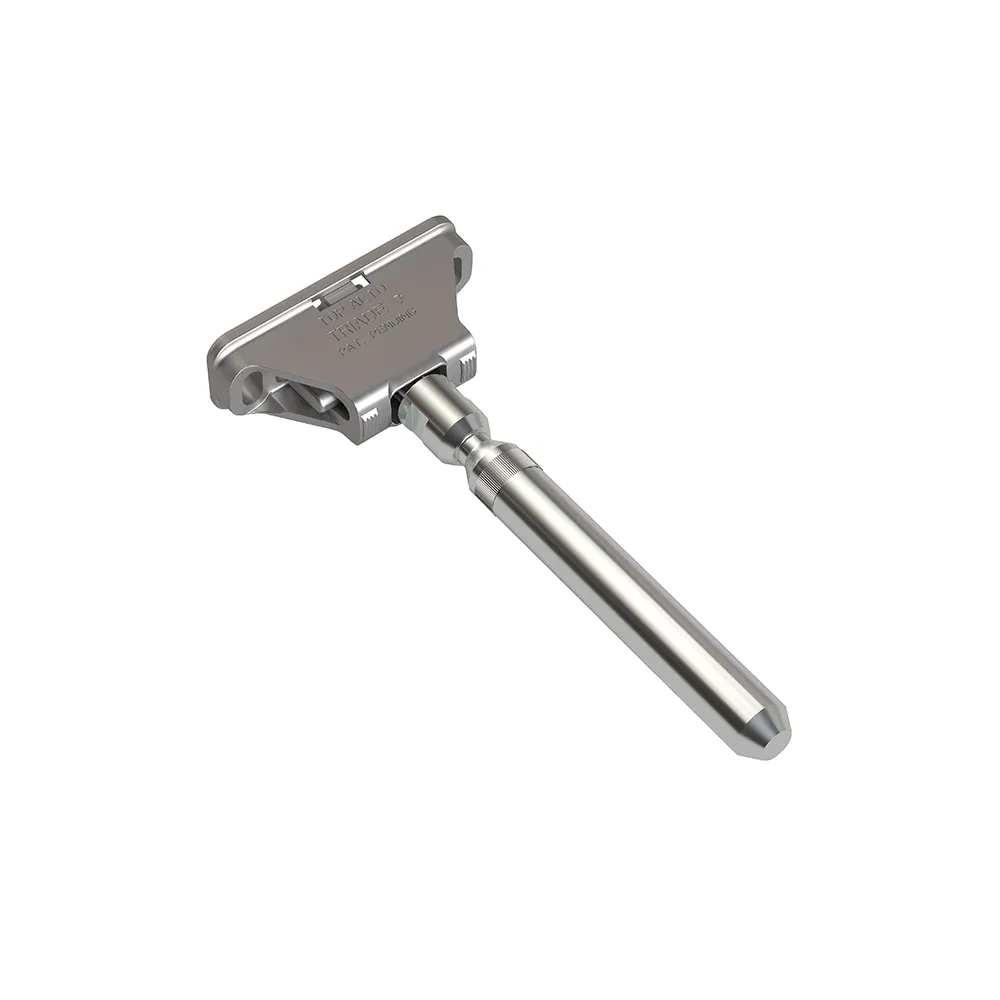

CONCEALED SHELF SUPPORT TRIADE 25-30mm
TRIADE is the concealed mounting bracket for shelves 30 to 40 mm thick. It has been conceived to simplify the shelf installation. It is provided with three indipendent adjustments:
1) VERTICAL: before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
2) HORIZONTAL: while placing the shelf in position, the supporting pins can be slided horizontally.
3) INCLINATION: when the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench.
The capacity loading is 15 Kg each (shelf weight included) for a shelf max 300 mm deep.
The minimum shelf depth required is 160mm.
ADDITIONAL BENEFITS DUE TO SECURITY LOCKING FEATURE
- Simple additional drilling.
- Small diameter hole in the shelf (only Ø 3,5 mm).
- Multiple assembly and disassembly of the shelf.
- Suitable for all thicknesses.
- Tested on plywood, mdf and chipboard.
