SYSTEM M+ - WITH UPPER PIVOT WITH CABLE ENTRY - CLASS G
SYSTEM M+ By Fritsjurgens
System M and System M+
- Hold positions at 0°, 90° and -90°
- Damper Control

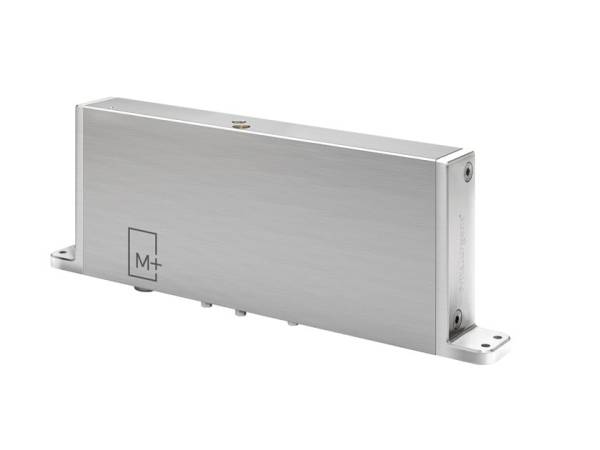

System M+
- 30° Speed Control
- Latch Control
- Guaranteed control over the movement from 20 to 500 kg
LATCH CONTROL AND 30° SPEED CONTROL
FritsJurgens’ adjustable pivot hinge System M+ introduces Latch Control and 30° Speed Control. Latch Control enables the door to accelerate in the last 10° of the movement of the door to ensure proper latching of the door. This is especially useful in exterior pivot doors.
30° Speed Control allows you to fine-tune the speed of the pivot door through the last 30° of the closing movement. This helps you to define the closing movement of the door, no matter the weight. Control from 20 kg to 500 kg.
System M’s best features can also be found in System M+: Damper Control, FlowMotion technology, hold positions at 0°, 90° and -90° and suitability for double- and single acting doors.
LATCH CONTROL
Provides the ability to adjust the pivot hinge to latch the door properly.
DAMPER CONTROL
Ensures a smooth and elegant closing movement and protects your door from touching the wall (back-check).
30º SPEED CONTROL
Allows you to determine the speed of the pivot door through the last part of the closing movement.

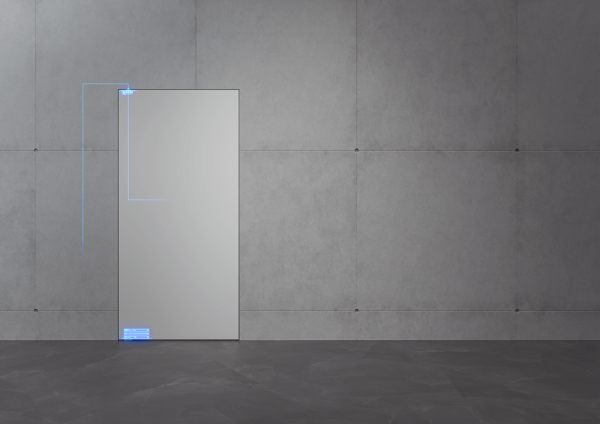

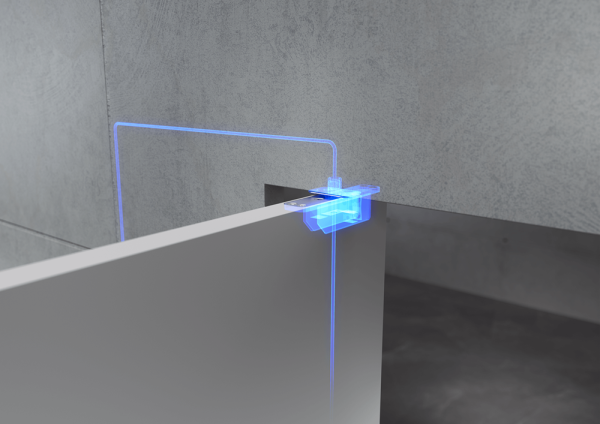

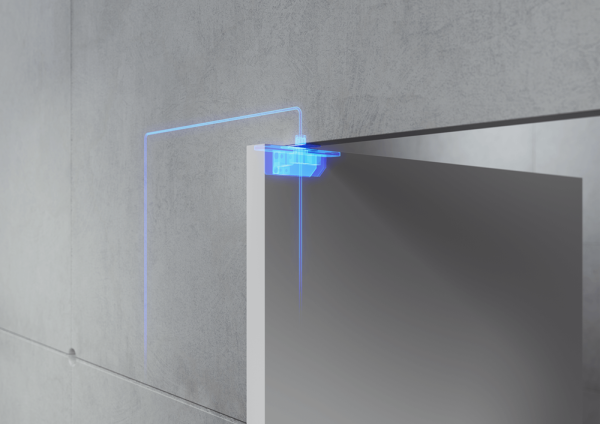

Top pivot cable grommet
This top pivot is specially designed to make pulling cables through the door and the top pivot as easy as possible. This allows extra features such as electronic security, cameras, and lighting to be easily added to the pivot door for extra comfort and ease of use.
