BRITON PUSH BAR - SINGLE LATCH - SILVER

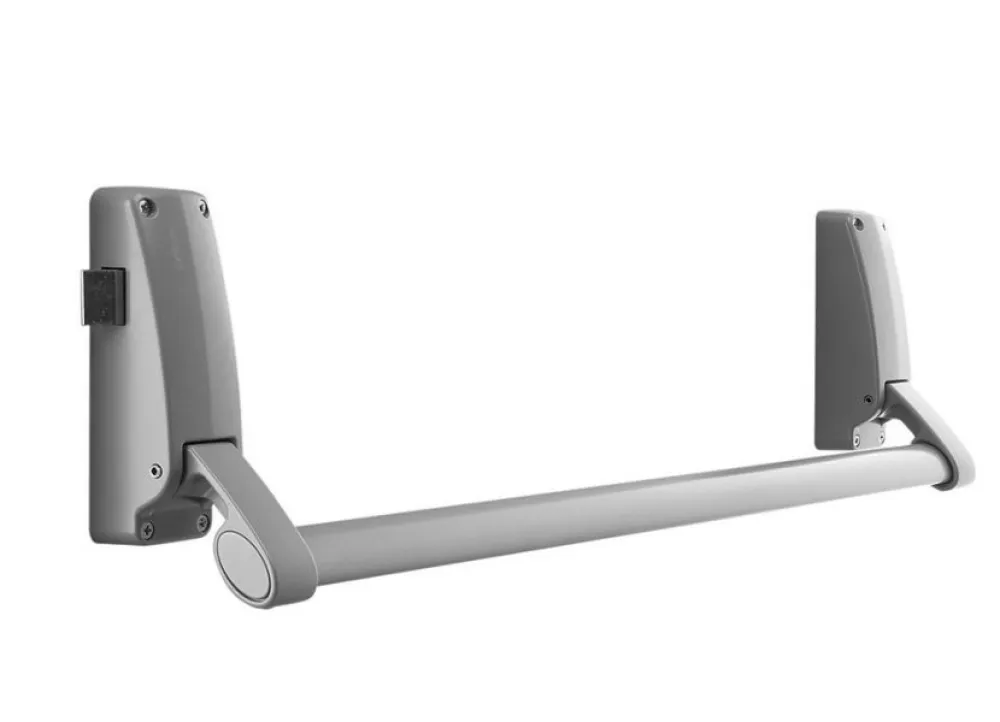

Briton 378 R SE Horizontal Push Bar
The Briton 378 R SE reversible rim panic latch is a CE Marked, 1 point locking device suitable for single left or right handed doors. This exit device is for installation on fire and smoke doors up to 2500mm high and 1300mm wide in public areas such as schools, hospitals, and entertainment venues.
The Briton 378 is tested to meet EN 1125 making it ideal for use in areas where door users may not be familiar with the building's escape routes and exit devices in the event of an emergency. Approved Document B recommends that panic exit devices, such as a push bar or crash bar, are used in areas with 60+ occupants, irrespective of the training of the users.
Key Features of the Briton 378 Single Door Panic Exit Device:
- Horizontal push bar operation
- Single point locking rim latch
- Anti-thrust device prevents unauthorised retraction of the latch bolt
- Reversible on site
- Sprayed silver finish
- CE marked to EN 1125 (2812-CPR-AAA011)
- UKCA marked to EN 1125 (1121-CPR-UK-AAA7569)
- Certifire Approved CF5506
- Fire tested to EN 1634-1
- Suitable for 120 minute fire rated timber doors*
- 240 minute fire rating on metal doors (378M available on request)
- Minimum door leaf width: 665mm
- Maximum door leaf width: 1300mm
- Tested to over 200,000 cycles
- Main casing dimensions: 165mm x 55mm x 99mm
